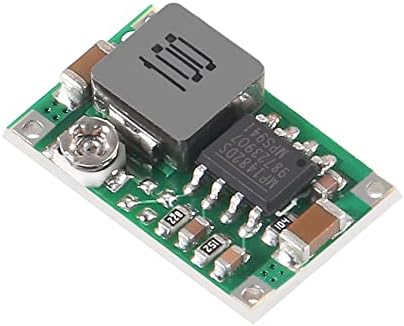

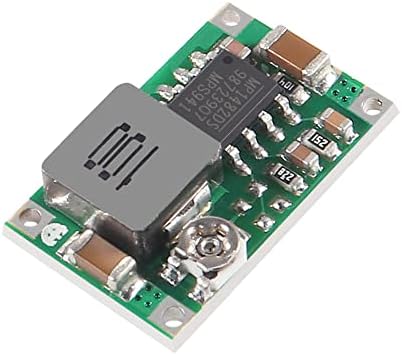

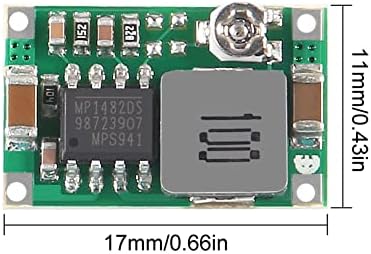

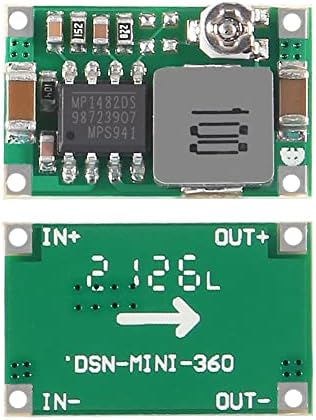

10Pcs Mini360 Buck Converter 3A DC Voltage Regulator Step Down Power Converter Module 4.75-23 V to 1.0-17 V DC-DC Voltage Regulator 3A Power Supply for DIY Portable Power Communication Equipment

Feature: Input Voltage: 4.75V-23V Output Voltage: 1.0V-17V Output Current: Peak value 3A, 1.8A for long time work Transfer Efficiency: 96% (max) Switching Frequency: 340KHz Output Ripple: 30mV (no-load) Load Regulation: +/-0.5% Voltage Regulation: +/-2.5%

Application: DIY portable sourse, vehicle power supply, communication equipment power supply, aero model, all kinds of occasions demanding for size and weight.

You can set a multimeter at the output port to adjust voltage synchronously, use screw driver to adjust potentiometer. It can get accurate voltage by tiny adjustment.

Package include: 10 x Mini360 step-down buck converter module

Attention: These circuit board can adjust current limit, fix 3A current limit. Please make sure this module work in its range before use. Please don't output short circuit, or the circuit board will burn out. When setting parameters, please make sure the output voltage keep stable to avoid possible damage.
